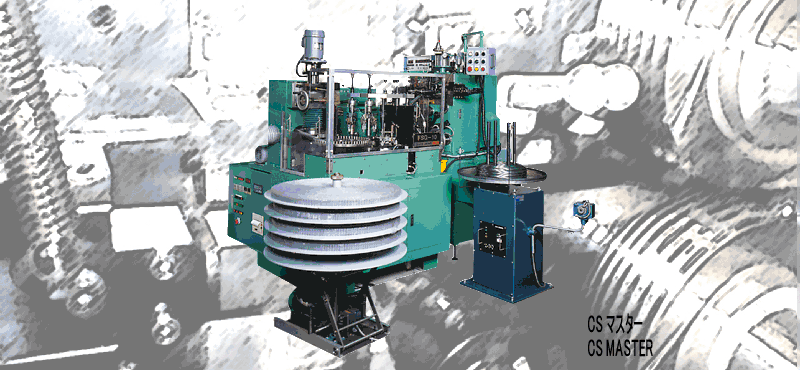

圧縮コイルバネを無人で成形し、組み付け機への供給や包装までを自動で行うシステムです。研磨機付や荷重試験機能付き、
全圧縮機能付き等のオプション類も充実しています。

The CS Master system offers a completely automated compression spring manufacturing process that can include
every stage from coiling to packaging. A full range of options includes in-process seat grinding, load testing, compression
setting , and other functions.
　　

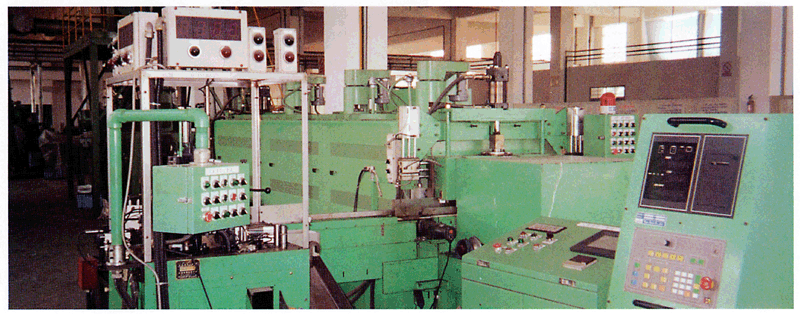

自動車のエンジンバルブ用バネの成形から、検査包装までを一貫生産するラインです。

This line produces valve springs used in automobile enginse. It's a completely automated process that even includes
testing and packaging.

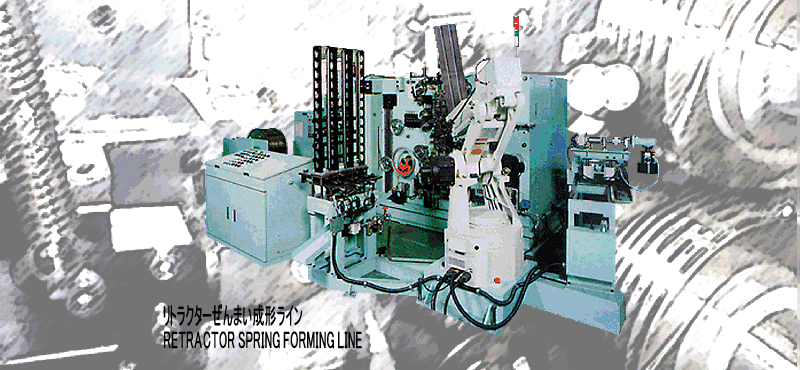

材料送り計測、焼鈍、端末成形/切断、巻き込み、ケース
挿入、箱詰めまでを自動で行うライン機です。

This automated spring-manufacturing line includes wire
feed measurement, annealing, end forming, cutoff, winding,
case insertion, and box packaging processes.

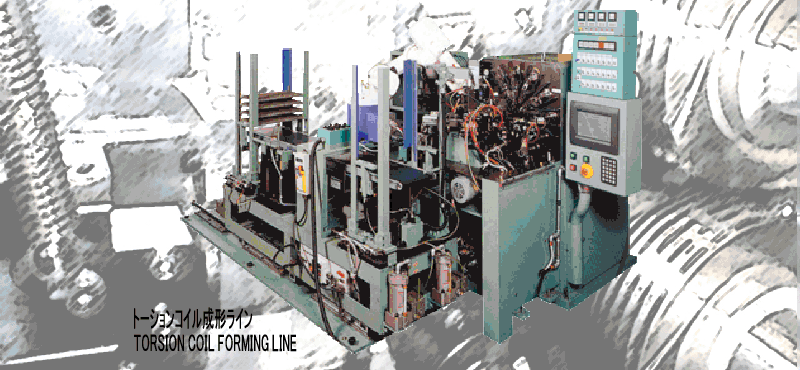

銅線の側長、皮膜剥離、成形/切断、加熱、本体側
コーティング、端末コーティングまでを自動で行うライン機です。

This spring forming line measures the coppe wire,
removes surface coatings, forms and cuts torsion coils,
loads them into pallets, and changes pallets all in one
integrated automated operation.

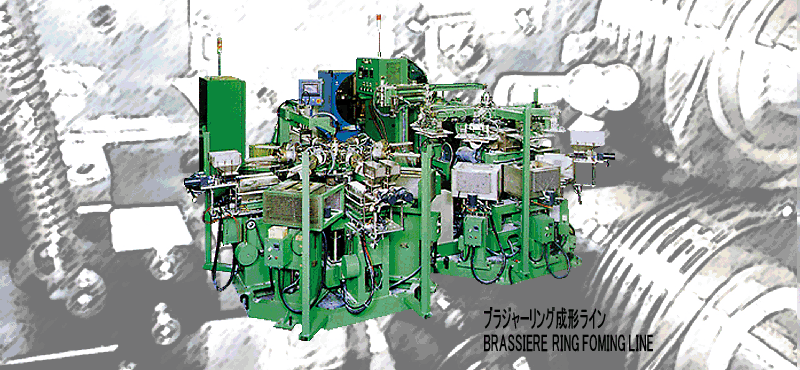

ブラジャーリングの成形/切断、加熱、本体側コーティングまで
を自動で行うライン機です。

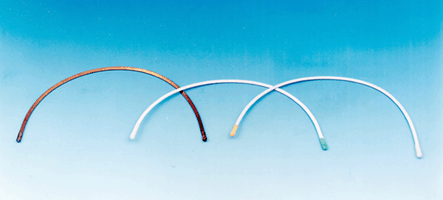

This forming line manufactures brassiere rings in one
automated operation which includes ring forming,
cutoff,tempering, partial surface coating, and end coating.
