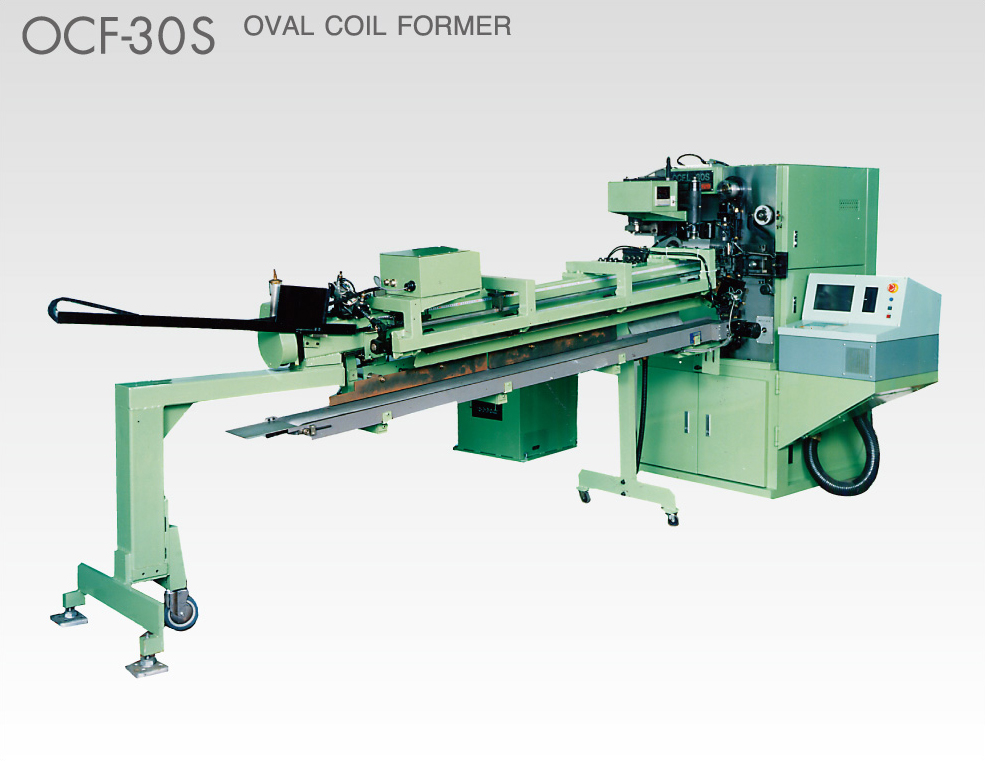

These are specialized machines used to form oval coils. They can produce coils non-stop at super-high　production speeds when equipped with our patented tooling. Polygon coils can also be produced at high　speeds with special tools and control data programming.




The optional device is necessary for the spring that is on blue back.

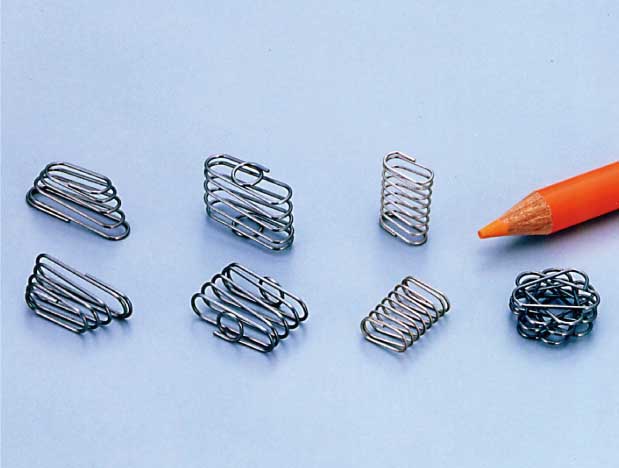

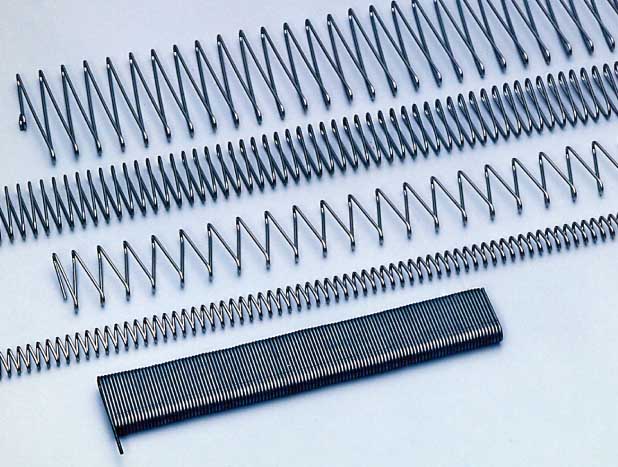

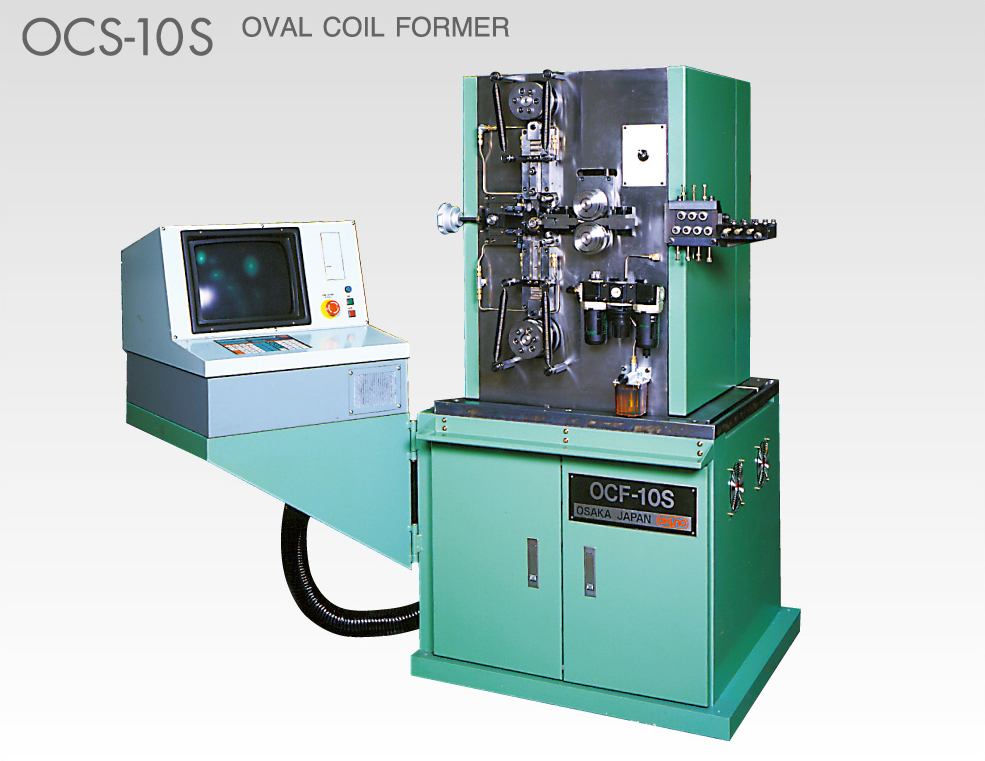

Item OCF-10S OCF-20S OCF-30S
Wire diameter to be used φ0.3～1.0mm φ0.6～2.0mm φ0.8～3.0mm
Foming capacityRadius part Max.
Mim.
Straight part Max.		 φ35mm
φD=φ30mm
φD=3d
30mm		 φ50mm
φD=φ50mm
φD=3d
40mm		 φ50mm
φD=φ50mm
φD=3d
50mm
Wire feeding speed 24m/min. 45m/min. 45m/min.
Accurcy of wire feeding 0.01mm 0.01mm 0.01mm
RPM of　foming die 750rpm(Max.) 1500rpm(Max.) 1500rpm(Max.)
AC servo Motor
W.feed axis
Pitch axis
Die axis
(Bending Adjusting Axis)
200w
200w
500w
(100w)
2.9kw
0.77kw
2.9kw
(200w)
4.4kw
0.77kw
4.4kw
(200w)
Machine dimension 850(W)×1350（L)×1500(H) 1200(W)×1800(L)×1700(H) 1200(W)×1800(L)×1700(H)
Installation Space (ref) 3m×2m(min.) 2.5m×3.5m(min.) 2.5m×3.5m(min.)
